What is the difference between 8 mm and 10 mm reinforcement?

Main Technical Characteristics

Reinforcement bars with diameters of 8 mm and 10 mm belong to the light rebar category, yet they possess significant differences in operational properties. The cross-sectional area of an 8 mm bar is 50.3 mm², while the 10 mm bar reaches 78.5 mm². This 56% difference directly impacts the structural load-bearing capacity.

The weight per linear meter also varies substantially: 8 mm rebar weighs 0.395 kg/m, whereas 10 mm rebar weighs 0.617 kg/m. This 56% difference affects total structural weight and transportation costs. The price of 8 mm rebar is traditionally lower compared to thicker diameters, making it a popular choice for mass residential construction and budget-limited projects. However, economic attractiveness should not override the technical requirements of a specific structure.

Strength Indicators and Loading

The design tensile strength for A400 class rebar (the most common in construction) is 355 MPa regardless of diameter. However, the absolute load-bearing capacity differs drastically. An 8 mm bar can withstand a tensile force of up to 17.9 kN, while a 10 mm bar can withstand up to 27.9 kN.

This 56% difference makes 10 mm rebar significantly more efficient for structures operating under high loads. Conversely, 8 mm bars are better suited for distribution reinforcement and structures with small spans.

Areas of Application in Construction

8 mm diameter rebar is widely used in private construction. It is used for reinforcing floor screeds, small foundation slabs, and lintels over window and door openings. It is particularly effective as distribution reinforcement in residential floor slabs.

10 mm bars are used in more critical structures. They are suitable for reinforcing grillages, strip foundations for small buildings, and columns for frame houses. In monolithic construction, 10 mm rebar is often used as the primary working reinforcement in floor slabs with spans up to 4 meters.

Economic Aspects of Selection

The cost of rebar is directly proportional to its mass; therefore, 10 mm bars cost approximately 56% more per linear meter. However, when calculating the cost per unit of load-bearing capacity, the situation changes. The material efficiency of 10 mm rebar is higher, making it more cost-effective for heavy-duty structures.

When purchasing large batches, the price difference becomes even more noticeable. Transportation costs for 10 mm rebar are higher due to the increased mass, but this is offset by the fewer number of joints and connections required in the structure.

Technological Features of Installation

The flexibility of 8 mm rebar is significantly higher, simplifying its placement in complex geometric shapes. The bending radius for such rebar is smaller, allowing for compact connection nodes. Installation is faster due to the lower weight of individual bars.

10 mm rebar requires more effort for bending and placement. The minimum bending radius increases, which can complicate work in confined conditions. At the same time, higher rigidity provides better stability for the rebar cage during concreting.

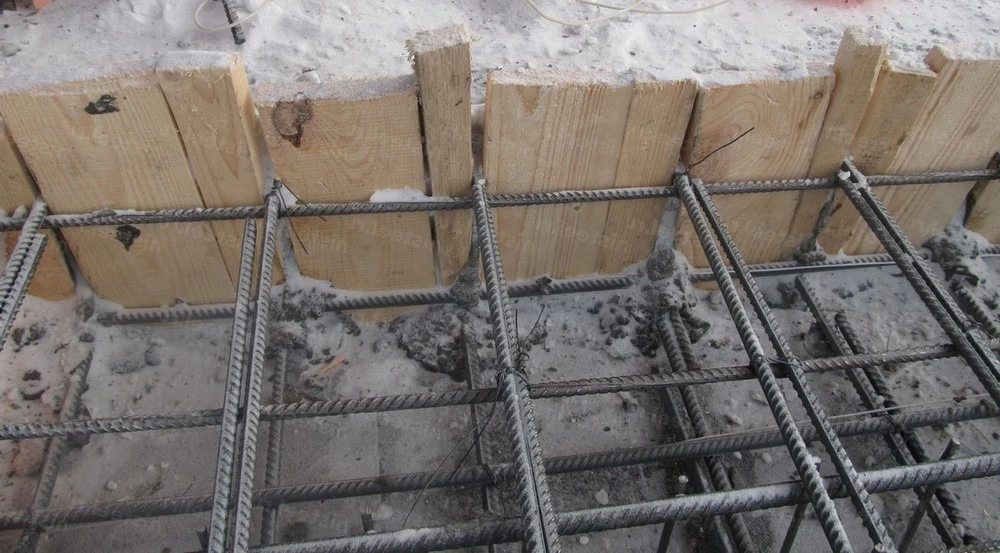

Concrete Bonding Properties

The perimeter of an 8 mm bar is 25.1 mm, while a 10 mm bar is 31.4 mm. The increased contact area with concrete in thicker rebar improves bonding and anchorage. This allows for reduced anchorage lengths and overlaps when connecting bars.

The rib depth of 10 mm rebar is usually larger, further improving the bond with concrete. This is especially important in zones of maximum stress, where bond quality critically affects structural performance.

Impact on Structural Durability

The thickness of the concrete cover remains the same for both diameters, but the relative protection thickness for 8 mm rebar is greater. This can positively affect corrosion resistance in aggressive environments.

At the same time, fewer joints in structures with 10 mm rebar reduce the risk of weak points. Since every joint is potentially a stress concentration zone, reducing them improves overall structural reliability.

The choice between 8 mm and 10 mm rebar depends on specific project conditions, calculated loads, and economic considerations. Proper diameter selection ensures the optimal balance of reliability, cost-efficiency, and construction feasibility.
